LSAW Pipe,api 5l lsaw pipe,a252 pipe,lasw piling pipe

Spcification

Product Dimension:WELD:0219-3000mm,WT:6mm-200mm.Length:3.0m-200m

Standard:API SPEC 5L PSL1&PSL2,ISO 3183,ASTM A53,ASTM A500,ASTM A252,ASTM A671,ASTM A672,

ASTM A691,EN10210,EN10217,EN10219 etc

Grades:Grade A/B,X42-X80,PSL1&PSL2, B50,B60,B70,C60,C65,C70,CC60,CC65, CC70,CB60,CB65.

CB70,Q215-345,GradeA-E,Grade 1-3,STK290-540,S275JRH, S275JOH,S275J2H,S355JRH,

S355JOH,S355J2H,P355NH, P355GH,S460JR,S460J0,S460J2,P460NH, P460GH

Applications of LSAW Pipes

Longitudinal Submerged Arc Welded (LSAW) pipes find widespread applications across various industries due to their robust construction and versatile capabilities. These pipes are commonly employed in the oil and gas industry, serving as key components in the infrastructure for the transmission of crude oil, natural gas, and other hydrocarbons.

Construction industry also benefits from the use of LSAW pipes, especially in projects involving piling, structural support, and foundation works.

Oil and Gas Pipelines: Used extensively for onshore and offshore oil and gas transportation.

Water Transmission: Suitable for transporting water in urban infrastructure and large-scale irrigation projects.

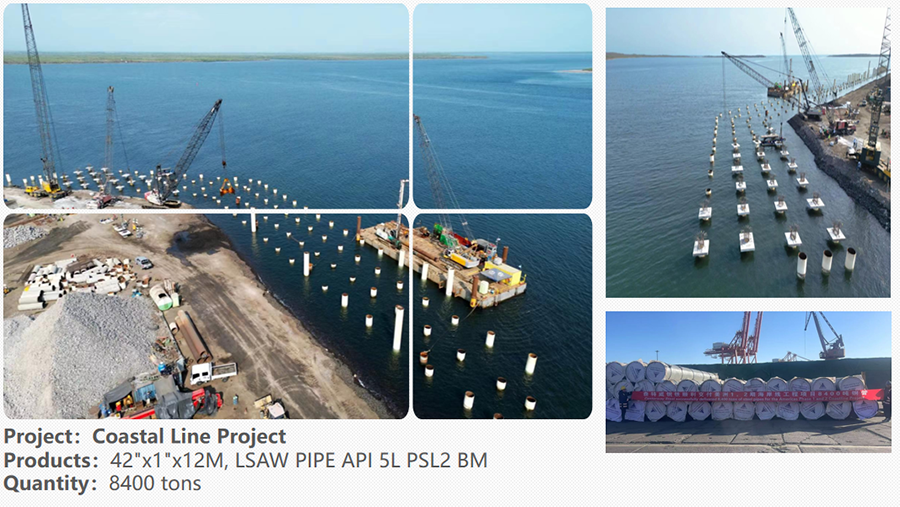

Structural Construction: Used as structural columns and piling pipes in high-rise buildings, bridges, and offshore platforms.

Petrochemical and Chemical Industries: Employed in transporting chemicals and petrochemical products that require robust, corrosion-resistant piping.

Description

LSAW (Longitudinally Submerged Arc Welded Steel pipes) in leaflets plate as raw material, the steel plate in the mold or molding machine pressure (volume) into using double-sided submerged arc welding and flaring from production.

Chemical Composition& Mechanical Properties

Standard	Grade	Chemical Composition (max)%					Mechanical Properties (min)
		C	Mn	Si	S	P	Yield Strength	Tensile Strength
		C	Mn	Si	S	P	(Mpa)	(Mpa)
GB/T700-2006	A	0.22	1.4	0.35	0.05	0.045	235	370
	B	0.2	1.4	0.35	0.045	0.045	235	370
	C	0.17	1.4	0.35	0.04	0.04	235	370
	D	0.17	1.4	0.35	0.035	0.035	235	370
GB/T1591-2009	A	0.2	1.7	0.5	0.035	0.035	345	470
	B	0.2	1.7	0.5	0.03	0.03	345	470
	C	0.2	1.7	0.5	0.03	0.03	345	470
BS En10025	S235JR	0.17	1.4	-	0.035	0.035	235	360
	S275JR	0.21	1.5	-	0.035	0.035	275	410
	S355JR	0.24	1.6	-	0.035	0.035	355	470
DIN 17100	ST37-2	0.2	-	-	0.05	0.05	225	340
	ST44-2	0.21	-	-	0.05	0.05	265	410
	ST52-3	0.2	1.6	0.55	0.04	0.04	345	490
JIS G3101	SS400	-	-	-	0.05	0.05	235	400
JIS G3101	SS490	-	-	-	0.05	0.05	275	490
API 5L PSL1	A	0.22	0.9	-	0.03	0.03	210	335
	B	0.26	1.2	-	0.03	0.03	245	415
	X42	0.26	1.3	-	0.03	0.03	290	415
	X46	0.26	1.4	-	0.03	0.03	320	435
	X52	0.26	1.4	-	0.03	0.03	360	460
	X56	0.26	1.1	-	0.03	0.03	390	490
	X60	0.26	1.4	-	0.03	0.03	415	520
	X65	0.26	1.45	-	0.03	0.03	450	535
	X70	0.26	1.65	-	0.03	0.03	585	570

Range of Roller Pipes

Number	Technical parameter	Unit	HQW11s-120X3200
1	Material yield limited	Mpa	245	345	345
2	Wall thickness	mm	120	100	110
3	Maximum pre-bending thickness	mm	110	90	100
4	Maximum width of steel plate	mm	3200	3200	3200
5	Minimum diameter of fully loaded rolling steel plate	mm	2500	1600	1600

Tolerance of Outside Diameter and Wall Thickness

Types	Standard
	SY/T5040-2000	SY/T5037-2000	SY/T9711.1-1977	ASTM A252	AWWA C200-97	API 5L PSL1
Tube end OD deviation	±0.5%D	±0.5%D	-0.79mm～+2.38mm	<±0.1%T	<±0.1%T	±1.6mm
Wall thickness	±10.0%T	D<508mm, ±12.5%T	-8%T～+19.5%T	<-12.5%T	-8%T～+19.5%T	5.0mm
Wall thickness	±10.0%T	D>508mm, ±10.0%T	-8%T～+19.5%T	<-12.5%T	-8%T～+19.5%T	T≥15.0mm, ±1.5mm
