Do you struggle with broken pipes in high heat? High pressure destroys weak pipes quickly. The a691 1 1/4 cr efw steel pipe solves this exact problem for you. The a691 1 1/4 cr efw steel pipe is a strong welded alloy pipe. It handles high pressure at very high heat. It contains chromium and molybdenum. These metals give the pipe great strength and stop rust in tough industrial jobs.
I see many projects fail because buyers pick the wrong pipes. You do not want to make this expensive mistake. We need to look at the exact details of this alloy pipe now. This true information will help you choose the right materials and save your money.

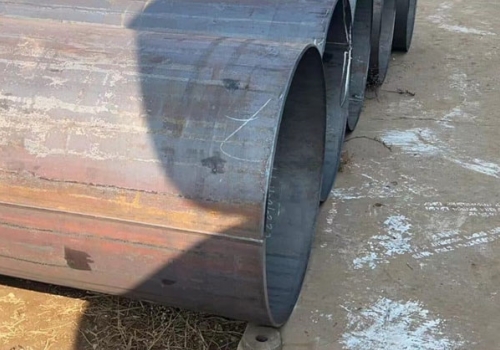

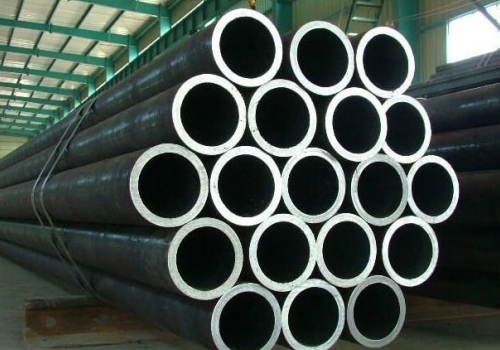

Wrong sizes will ruin your pipeline project. Guessing the dimensions causes bad leaks and big safety risks. You must know the exact sizes before you buy anything. The a691 1 1/4 cr efw steel pipe comes in outer diameters from 457 mm to 1422 mm. The wall thickness goes from 2 mm to 60 mm. You can buy single random or double random lengths to fit your specific design.
We offer many class options for this pipe. You can choose Class 11, 12, 22, 23, 30, 31, 32, 33, 34, or 60. Each class uses a different heat treatment and test. This gives you total control over the strength of the pipe. When I work with buyers, I always tell them to match the class to their exact work needs.
The large diameter range is very helpful for major industrial plants. A 1422 mm pipe can move a huge amount of steam or gas very fast. A 60 mm wall thickness means the pipe will not burst under high internal pressure. We make sure every pipe passes strict quality checks. Here is a clear list of the basic sizes:
| Size Type | Option Range |
|---|---|
| Outer Diameter | 457 mm to 1422 mm |
| Wall Thickness | 2 mm to 60 mm |
| Pipe Lengths | Single Random, Double Random |
| Base Material | A387 Grade 11 Steel Plate |
Weak pipes rust fast when they touch harsh chemicals. This fast wear creates bad working conditions. You need a pipe with the right chemical parts to stop this damage. This pipe is very strong because it has high levels of chromium and molybdenum. The tensile strength reaches up to 100 ksi (690 MPa). It also has a minimum yield strength of 43 ksi (310 MPa) for hard jobs.
The secret to this pipe is its chemical mix. It has 1.25% chromium and 0.5% molybdenum. Chromium adds great defense against rust and air damage. Molybdenum makes the steel much stronger in high heat. I often see standard carbon pipes melt or bend under high heat, but this alloy pipe stays perfectly strong.
We test these pipes hard to make sure they meet strict rules. The tensile strength and yield strength show how much weight the pipe can take before it breaks. A minimum elongation of 18% means the pipe bends a little bit without snapping. It will not just crack under sudden pressure changes.
Here is a simple table showing the exact chemical limits and physical properties of the pipe:
| Property Name | Number Value |
|---|---|
| Carbon (C) | 0.05% to 0.17% |
| Manganese (Mn) | 0.40% to 0.65% |
| Silicon (Si) | 0.50% to 0.80% |
| Chromium (Cr) | 1.00% to 1.50% |
| Molybdenum (Mo) | 0.45% to 0.65% |
| Tensile Strength | 75 to 100 ksi (515 to 690 MPa) |
| Yield Strength | 43 ksi (310 MPa) minimum |
| Elongation | 18% minimum |
These clear numbers prove that the pipe is built for the hardest environments on earth.
Using normal pipes in extreme heat leads to instant pipe death. Replacing melted pipes ruins your project budget. You must use pipes made just for high temperatures. You should use this alloy pipe in crude oil distillation units and gas extraction lines. It can take heat up to 1050ºF (565.6ºC). This makes it the safest choice for big oil refineries and large power plants.
Oil refineries run at very high heat all day. Crude oil distillation needs pipes that will not change shape or break. I supply this pipe to many big oil companies. They love it because it stays strong even at 1050ºF. This solid strength keeps the whole plant working without bad sudden stops.

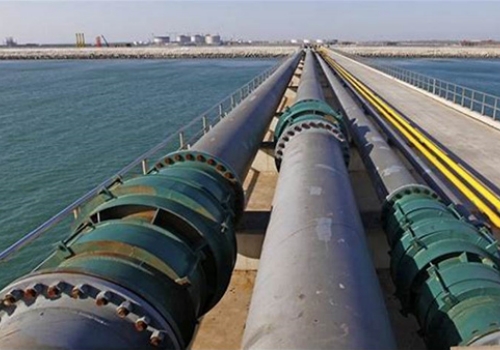

Moving high pressure steam is a very dangerous task. If a weak pipe bursts, it causes huge damage. The thick walls and strong welds of this pipe make it perfect for hot steam transport. The electric fusion welding process makes the seam just as strong as the rest of the pipe.
Here is a quick look at where this pipe works the best for you:
| Work Industry | Exact Application | Main Reason to Use |
|---|---|---|
| Oil and Gas | Distillation Units | Handles high heat up to 1050ºF |
| Power Plants | Hot Steam Lines | Holds high internal pressure safely |
| Chemical Plants | Extraction Lines | Stops deep rust and bad corrosion |
We at Centerway Steel have many years of experience giving these exact pipes to global projects. We know they work well.
Are you still confused about which pipe to buy? Unanswered questions cause bad buying choices. Let me clear up your doubts right now so you can buy safely. Here are the most common questions buyers ask me about this pipe. These direct answers will help you understand the exact benefits and uses of this special alloy steel pipe.
What does EFW mean?
EFW means Electric Fusion Welded. We use an electric arc to melt and join the steel plates together. This creates a very thick seam that can handle huge pressure.
Why do you use A387 Grade 11 plate for this pipe?
The A387 Grade 11 plate is a very strong steel. It already has the exact 1.25% chromium and 0.5% molybdenum we need. We roll this hot plate and weld it to make the pipe.
Can I use this pipe for cold water?
You can use it for cold water, but it is a waste of your money. This pipe is made for extreme heat and very high pressure. For normal cold water, a standard carbon steel pipe is much cheaper and works great.
How do I choose the right Class for my work?
The class depends on the heat treatment your project needs. For example, Class 11 and Class 22 use different stress relief steps. I always tell my clients to check their design plans. You can also send your design to us at Centerway Steel. We will help you pick the exact class you need.
The a691 1 1/4 cr efw steel pipe offers top strength and heat defense for your hardest jobs. We provide these great pipes to make your pipeline project a total success.
